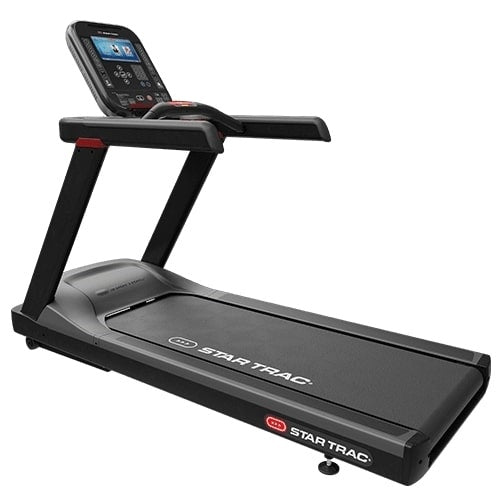

The 4 Series cardio line from Star Trac is the perfect solution for the hospitality and multi-housing markets. With premium full color flat panel displays, quick select adjustment keys, and optional personal viewing screen, the 4TR provides smaller facilities with the look and performance of a full commercial product.

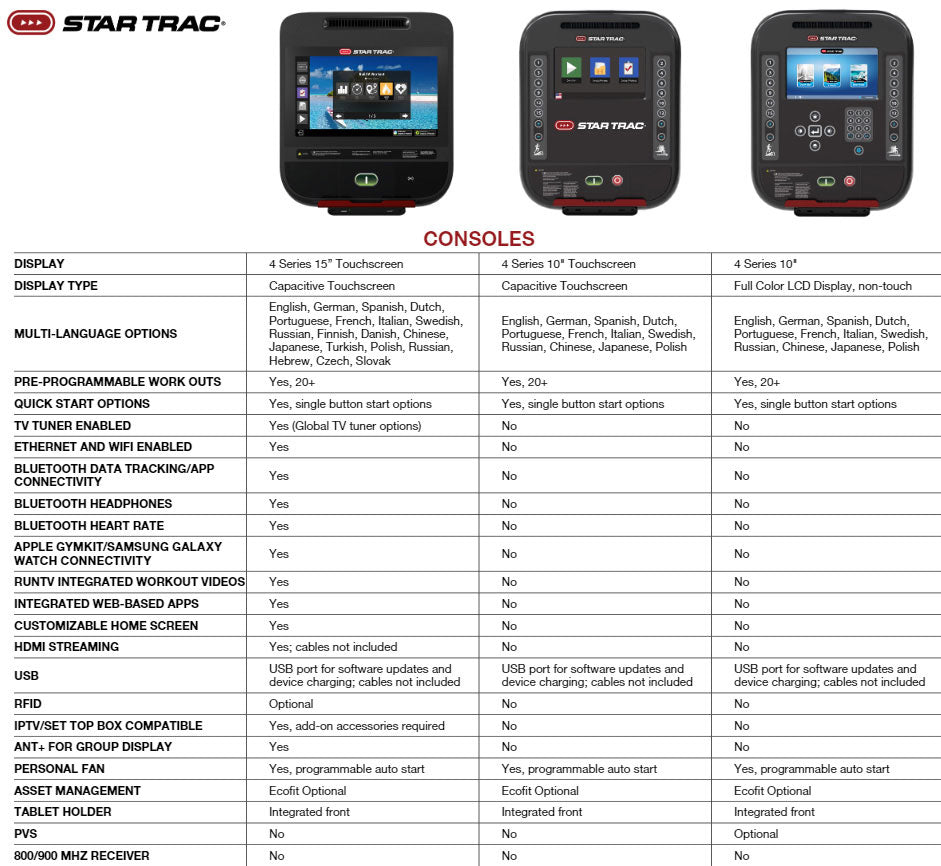

Choose between 4 Series 15″ Embedded, 10″ Touchscreen & 10″ LCD versions of the new OpenHub family of consoles

FEATURES

  BASE FEATURES

• Deck System: Reversible MDF deck with phenolic coating
• Absorption System: Triple cell cushioning system provides maximum shock absorption making the entire deck a sweet spot
• Heart Rate Measurement System: Telemetry and contact HR
• Center Controls Bar: Warm bar with contact HR and Emergency Stop
• Display: Full Color 10" LCD
• User Detect System: Yes, programmable on/off
• Accessories: Bottleholder, pre-wired for PVS entertainment, USB port
• Additional Features: 3.5in rollers

  FRAME

• Material: Powder Coated Steel Frame
• Customizable: Paint color options approval required
• Standard Color Options: 60 Black

  CONSOLE

• Display: 4 Series 10"
• Display Type: Full Color LCD Display, non-touch
• Multi-Language Options: English, German, Spanish, Dutch, Portuguese, French, Italian, Swedish, Russian, Chinese, Japanese, Polish
• Pre-Programmable Work Outs:Yes, 20+
• Quick Start Options: Yes, single button start options
• Tv Tuner Enabled: No
• Ethernet and Wifi Enabled: No
• Bluetooth Data Tracking/App Connectivity: No
• Bluetooth Headphones: No
• Bluetooth Heart Rate: No
• Apple Gymkit/Samsung Galaxy Watch Connectivity: No
• Runtv Integrated Workout Videos: No
• Integrated Web-Based Apps: No
• Customizable Home Screen: No
• HDMI Streaming: No
• USB: USB port for software updates and device charging; cables not included
• RFID: No
• IPTV/SET Top Box Compatible: No
• ANT+ For Group Display: No
• Personal Fan: Yes, programmable auto start
• Asset Management: Ecofit Optional
• Tablet Holder: Integrated front
• PVS: Optional
• 800/900 MHZ Receiver: No

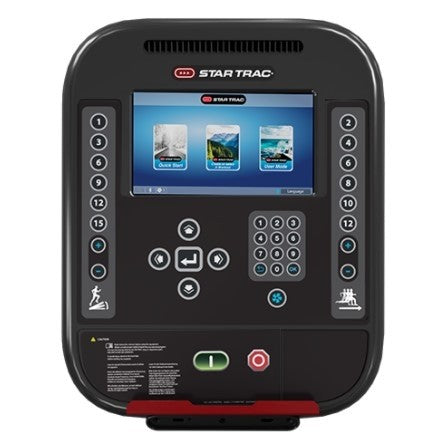

Star Trac 4 Series 10″ LCD Cardio Console

The LCD display provides all the functionality you need in a sleek, modern package. With features like a full-color display, quick keys and USB charging, this is the LCD screen that is anything but standard.

• Treadmill includes Quick Keys for one-touch selection of preset speed and elevation settings on the fly
• USB charging port
• Multiple program options
• Pre-wired for ECOFIT asset management solution
• Pre-wired for PVS entertainment option

TECH SPECS

• Drive System: 3 HP DC motor
• Electrical Requirements: 110V/15 Amp with standard outlet; or 220V/15 Amp
• Running Belt System: 22" (55cm) wide belt
• Size Of Running Surface: 60" x 22" (152cm x 55cm)
• Step Up Height: 7" (17cm)
• Incline Range: 0-15% max incline
• Speed Range: 0.5-12.5mph (0.5-20kmh)
• Max User Weight: 450lb (205kg)
• Product Weight: 399lbs (181kg)
• Dimensions: 81"L x 32"W x 60"H (L:206cm, W:81cm, H:152cm)
• Shipping Dimensions: 89"L x 36"W x 23"H (L:226cm, W:92cm, H:59cm)
• Shipping Weight: 442lbs (201kg)
